Superheater For Steam Boiler High Quality Boiler Super heater with stainless steel shield cover
Boiler High Quality Super heater Brief Introduction
1. Replacement superheaters for in-kind replacement, as well as improved performance and/or extended life, can be furnished for any OEM's unit.
2. Procedures necessary to insure acceptable bend geometry and material mechanical characteristics, as well as those required to manufacture any design with any of the materials needed to meet today's performance and code requirements, are available
Superheater Function
1. The dry saturated steam drum to further make the superheated steam heating.
2. When the soda coexist, the soda heating the mixture, add heat can only be used to make soda water evaporate into steam in the mixture, and cannot make steam temperature of superheated steam.
3. To get to the superheated steam, the commonly used method is to steam separated from the mixture of soda, for its further heating, accomplish this task components become the superheater.
4. Reduce the temperature of flue gas, recover the heat in the flue gas, improve boiler efficiency.
Boiler Superheater Structural character
1. The waste heat boiler is outdoor horizontal smoke tube boiler and is composed of boiler shell and inlet & outlet smoke box. Gas is diverted by inlet smoke box and washes smoke tube in vertical direction and finally converges and flows out from outlet smoke box.
2. In order to avoid a direct wash to front tube sheet by high-heat gas, a refractory protection is cast on the surface of front tube sheet and a refractory protective tube is installed on the inlet of the smoke tube.
3. Steam space is located on the upper part of boiler shell smoke tube, and a wire mesh demister is installed on the steam outlet for steam-water separation.
4. The whole waste heat boiler is supported by two saddles; one along the direction of the gas flow is fixed support and is fixed on the foundation by eight anchor bolts, others are sliding supports.
Technical Parameter
| Applied Area | Sugarcane Mill |
| Structure Type | Tube Coil |
| Tube Material | Alloy steel , Carbon steel ,SS steel , ND steel |
| Standard | China GB, ASME |
| Manufacturer Grade | China A Grade, ABS Certificated, ISO Certificated |
| Tube Type | Bare Tube equipped with shield and claps |
| Tube Specification | As per Customer requirements |
| Tube Thickness | As per Customer requirements |
| Working Pressure | depends on material |
| Working Temperature | depends on material |
| Welding | Automatic GTAW(TIG) tube connecting |
| Product name | Boiler superheater |
| temperature | 540℃~570℃ |
| Outer diameter | 30~60mm |
| Material | Carbon steel,stainless steel,alloy steel |
| type | Vertical ;horizontal |

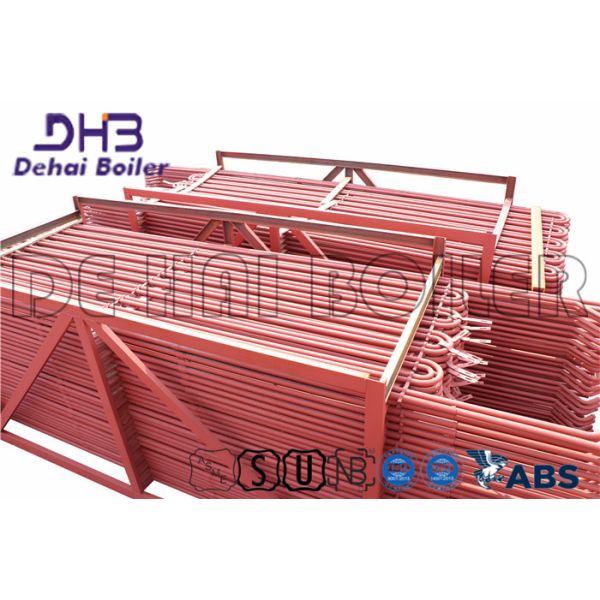

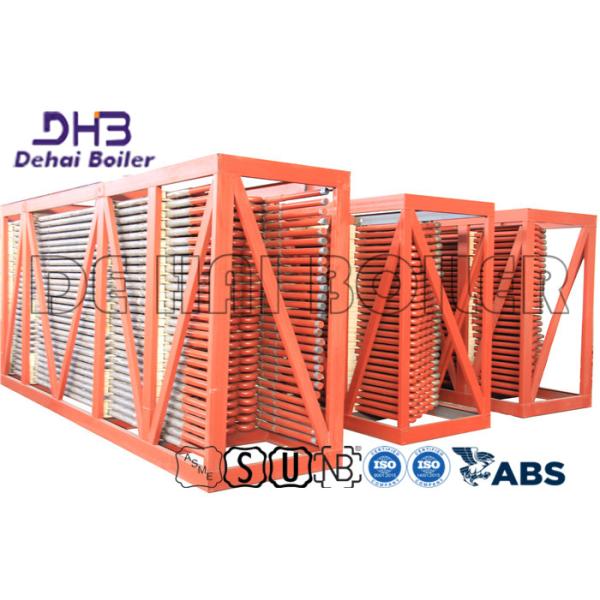

Iron Frame Package
